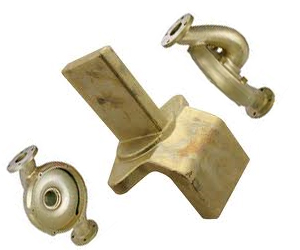

Aluminium Bronze Casting

Aluminium Bronze Casting

Chemical Composition

AB-1

Standard: BS 1400

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
AB-1	Rem.	0.1	0.05	0.5	1.5-3.5	1	8.5-10.5	1	0.25	0.30

AB-2

Standard: BS 1400

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
AB-2	Rem.	0.1	0.05	0.50	4-5.5	4-5.5	8.8-10	1.5	0.1	0.30

AB-3

Standard: BS 1400

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
AB-3	Rem.	0.1	0.03	0.4	0.5-0.7	0.1	6-6.4	0.5	2-2.4	0.8

ALBC-1

Standard: JIS

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
ALBC1	85-90	0.1	0.1	0.5	1-3	0.1-1	8-10	0.1-1

ALBC-2

Standard: JIS

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
ALBC2	80-88	0.1	0.1	0.5	2.5-5	1-3	8-10.5	0.1-1.5

ALBC-3

Standard: JIS

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
ALBC3	78-85	0.1	0.1	0.5	3-6	3-6	8.5-10.5	0.1-1.5

ALBC-4

Standard: JIS

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
ALBC4	71-84	0.1	0.1	0.5	2-5	1-4	6-9	7-15

C95400

Standard: ASTM

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
C95400	83 Min	0.1	0.03	0.1	3-5	1.5	10-11.5	0.5

C95500

Standard: ASTM

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN
C95500	78 Min	0.1	0.03	0.1	3-5	3-5.5	10-11.5	3.5

C95800

Standard: ASTM

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI
C95800	78 Min	0.1	0.03	0.1	3.5-4.5	4-5	8.5-9.5	0.8-1.5	0.1

G-CuAl10Fe

Standard: DIN

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
G-CuAl10Fe	83-89	0.2	0.1	0.4	2-3.8	2.7	8.7-10.7	0.8	0.1	1

G-CuAl9Ni

Standard: DIN

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
G-CuAl9Ni	82-86.5	0.2	0.1	0.2	1-2.8	1.5-3.8	8.7-9.8	2.3	0.07	0.8

G-CuAl10Ni

Standard: DIN

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
G-CuAl10Ni	76-80.5	0.1	0.03	0.2	3.5-5.3	4.5-6.3	9-10.6	2.3	0.07	0.8

G-CuAl11Ni

Standard: DIN

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
G-CuAl11Ni	72-77	0.1	0.03	0.2	4.3-5.8	5.3-6.8	9.3-11.3	2.3	0.07	0.8

Physical Properties

Aluminium Bronze
Grade B.S. 1400: 1985	Nominal Composition	2% PS N/mm Min	Tensile Strength N/mm Min	Elongation % Min	Brinell Hardness Min
AB1	89/9/2	180	500	18	100
AB2	85/9/4/5	250	600	13	140
ALBC2	84/9/4/5		490	20	120
ALBC3	82/10/4/4	245	590	15	150
