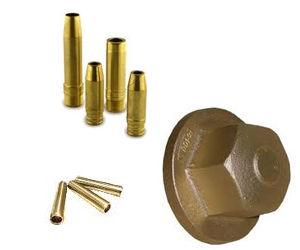

Manganese Bronze Casting

Manganese Bronze Casting

Chemical Composition

HTB-1

Standard: BS 1400

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
HTB 1	55 Min	1	0.5	Rem.	0.7 - 2	1	0.5-2.5	0.1-3	0.1	0.2

HTB-2

Standard: 304-1981

Copper Alloys	CU	SN	PB	ZN	FE	AL	MN	SI	Impurities
HTB-2	55 Min	0.2	0.2	Rem.	1.5-3.25	3-6	4	0.1	0.2

HTB-3

Standard: BS 1400

Copper Alloys	CU	SN	PB	ZN	FE	NI	AL	MN	SI	Impurities
HTB-3	55 Min	0.2	0.2	Rem.	1.5-3.25	1	3-6	1.5-4	0.1	0.2

Physical Properties

Manganese Bronze
Grade B.S. 1400: 1985	Nominal Composition	2% PS N/mm Min	Tensile Strength N/mm Min	Elongation % Min	Brinell Hardness Min
HTB1	58/1/1/1/39	170	450	20	110
HTB1	58/1/2/3/36
HTB1	58/2/2/4/34	450	750	8	180
HSBC4		410	755	12	200
HSBC3		305	635	15	165

Related words : Manganese Bronze Casting, Gravity Die Casting, Die Casting Companies, Pressure Die Casting, Aluminum Sand Casting, Die Casting, Aluminium Die Casting, Bronze Sand Casting, Aluminum Die Casting, Green Sand Casting, Brass Die Casting, Sand Castings, Zinc Die Casting, Bronze Casting, Sand Casting Processes, Sand Casting Molds, Die Casting Process, Zinc Alloy Die Casting, Aluminum Die Casting Alloys, High Pressure Die Casting

Please contact us for all your needs of

Manganese Bronze Casting

at best prices from India. We are the biggest Indian Manufacturers Exporters of

Manganese Bronze Casting.
